5. Running the tool

5.1. Instructions

The operation of the Data Selector tool is explained in this section. While the interface is similar between the ArcGIS and MapInfo implementations of the tool, there are some differences. These are pointed out where relevant throughout this document.

As discussed in the Setting up the tool section, the Data Selector tool is operated from the GIS application. It relies on the SQL tables containing any data that may be selected and a configuration document for setting up the tool. Therefore, before running the tool, ensure the following conditions are met:

  • The XML configuration document has been set up correctly and is named correctly.
  • The Data Selector tool has been installed and set up.

See also

Please refer to the setup section for further information about any of these requirements.

5.1.1. Opening the form

To open the Data Selector tool in ArcGIS, click on the Data Selector tool button (Fig. 5.1).

../_images/LaunchSelectorToolArcGIS.png

Fig. 5.1 Launching the Data Selector tool (ArcGIS)

To open the Data Selector tool in MapInfo, select Tools… -> Data Selector in the Tools menu (Fig. 5.2).

../_images/LaunchSelectorToolMapInfo.png

Fig. 5.2 Launching the Data Selector tool (MapInfo)

If there are any structural issues with the XML document, the tool will display a message with the error it has encountered, and not load any further.

../_images/LaunchWarningArcGIS.png

Fig. 5.3 Example warning message displayed for any XML structural issues

Provided that the XML document is otherwise correct, the form will display (Fig. 5.4).

../_images/DisplayFormMapInfo.png

Fig. 5.4 The form displaying the available SQL tables and options (MapInfo)

5.1.2. Using the form

Select the required source table in the SQL Tables box (Fig. 5.5).

../_images/SelectSQLTableMapInfo.png

Fig. 5.5 Select the required source table in the SQL tables list

Select the output file format to contain the selected records (Fig. 5.6).

../_images/SelectOutputFormatMapInfo.png

Fig. 5.6 Select the output file format

The following options are available in MapInfo:

  • MapInfo (.tab) file
  • ESRI (.shp) file
  • Comma-separated (.csv) file
  • Tab-separated (.txt) file

The following options are available in ArcGIS:

  • Geodatabase
  • Shapefile
  • Text file (tab delimited)
  • CSV file

If you have selected ‘MapInfo (.tab) file’ as the output file format (only available in MapInfo) you can optionally also select one of the pre-defined symbology sets to apply to the output file (Fig. 5.7). Symbology sets are specified in the configuration file

../_images/SelectSymbologySetMapInfo.png

Fig. 5.7 Select a symbology set to apply to the records (MapInfo only)

If you have selected ‘ESRI (.shp) file’ (available in ArcGIS or MapInfo) or ‘MapInfo (.tab) file’ (available only in MapInfo) as the output file format you can optionally also select if the records should be spatially plotted or re-plotted (Fig. 5.8). In ArcGIS, the records are automatically plotted if a geometry field is included.

../_images/SelectSpatialPlottingMapInfo.png

Fig. 5.8 Select a symbology set to apply to the records (MapInfo only)

Finally, select whether the log file should be overwritten, and whether the spatial columns should be deleted after use (MapInfo only). Now the form is set up to enter and run your query.

5.1.3. Entering queries

Specify the columns and SQL clauses that you wish to use to query the selected table. All syntax should adhere to SQL Server SQL syntax, and it is important that the correct part of the query is entered in the correct text box. Bear in mind when writing your query that the tool is designed to run a SELECT query only, and that it will not execute an action query. Simply enter the columns you wish to select in the Columns box, including any changes in name (e.g. CommonName as Name), your selection clause in the Where box, and your Group By and Order By clauses in their relevant boxes as appropriate. A number of examples are shown in Fig. 5.9 (a simple query including geometry), Fig. 5.10 (a spatial query using grouping) and Fig. 5.11 (a non-spatial, or tabular, query).

Note

If a Group By clause is included for a query that includes a spatial element, the geometry must be grouped too using SQL specific syntax (see Fig. 5.10 for an example using an aggregate function).

Note

It is not necessary to include key words such as SELECT, WHERE, GROUP BY and ORDER BY. Doing so will make the tool fail.

../_images/ExampleQuery1.png

Fig. 5.9 Example of a simple query using geometry (ArcGIS)

../_images/ExampleQuery2.png

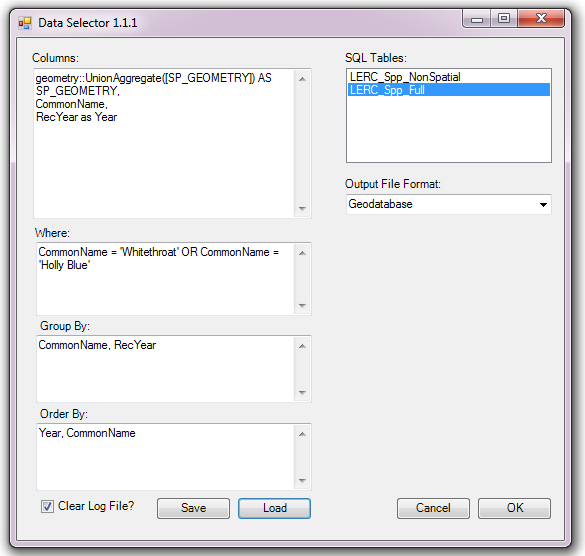

Fig. 5.10 Example of a query using spatial grouping (ArcGIS)

If no spatial element is selected in the query, the output will be tabular. An example of such a query is shown in Fig. 5.11, where a simple report is generated of the number of records for each taxon group.

../_images/ExampleQuery3.png

Fig. 5.11 Example of a summary query with tabular output (ArcGIS)

5.1.4. Running the query

Once the correct query has been entered and the output format selected, and the plotting and symbology defined (MapInfo only), check whether the log file should be overwritten using the Clear Log File check box. Then, click OK. You will be prompted for an output file (Fig. 5.12). Enter a name for your output and click Save. If an existing file is selected, the tool will prompt you for permission to overwrite this, or to choose a different name. Once the output name has been selected the tool will begin the process.

../_images/DefineOutput.png

Fig. 5.12 Enter the name for your output file.

Depending on which version of the tool you are using, and whether you are generating a spatial or a tabular output, the output will be created and shown as follows:

  • If you are using MapInfo and are creating a spatial output layer, it will be added to the view and shown.
  • If you are using ArcGIS and are creating a spatial output layer, it will be split into point and polygon layers as required and added to the view in a grouped layer.
  • If you are using MapInfo and are creating tabular output in CSV or TXT format, it will not be added to the view.
  • If you are using ArcGIS and are creating tabular output, or MapInfo and creating tabular output in .tab format, it will be added to the view and shown.

An example of spatial and tabular outputs in ArcGIS is shown in Fig. 5.13 and Fig. 3.4.

../_images/SpatialOutput.png

Fig. 5.13 Example output from a spatial query (ArcGIS; Zoomed in to maintain confidentiality)

../_images/TabularOutput.png

Fig. 5.14 Example output from a non-spatial query (ArcGIS)

Once the process has finished, a messagebox will ask you whether you wish to close the form (Fig. 5.15). After you have made your choice the log file is shown (Fig. 5.16) so you can check the process has completed correctly, and the results will be added to the screen as discussed above. Note that the log file entries are different between ArcGIS and MapInfo versions.

../_images/FinishedArcGIS.png

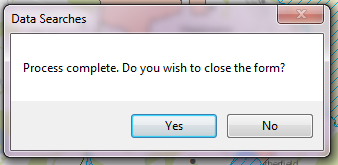

Fig. 5.15 User is asked whether the form should be closed after the process finishes

../_images/LogFileArcGIS.png

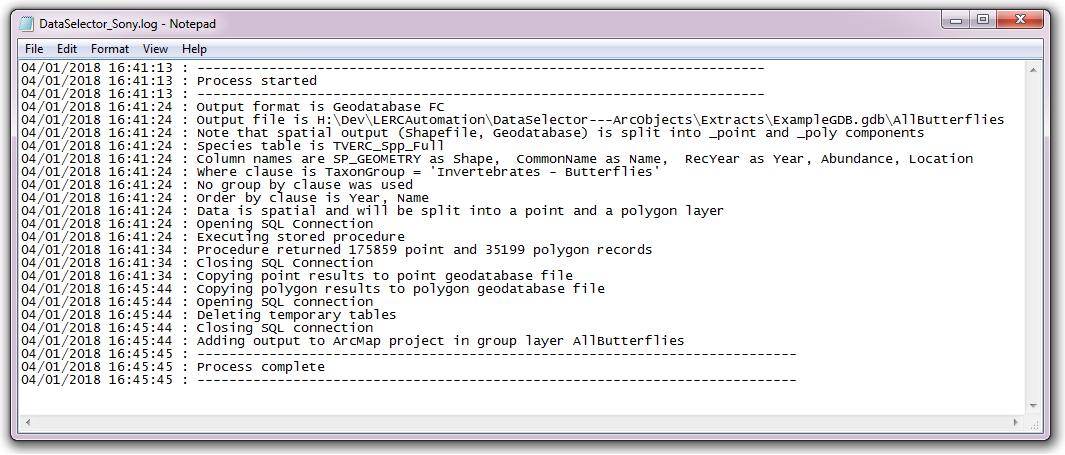

Fig. 5.16 The log file is shown when the process finishes (ArcGIS)

5.2. Loading & saving queries

Queries can be saved for future use, so once a query has been written and saved it can be loaded and re-run by any user at any time and it will output results from the most up-to-date copy of the database.

Queries can be saved or loaded by using the Save and Load buttons (Fig. 5.17). They are saved as a simple text file with minimal formatting.

../_images/SaveLoadQueriesMapInfo.png

Fig. 5.17 Save and load queries (MapInfo)
